Description

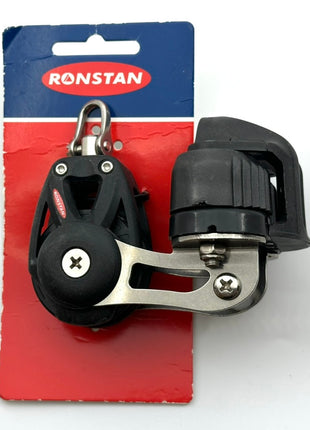

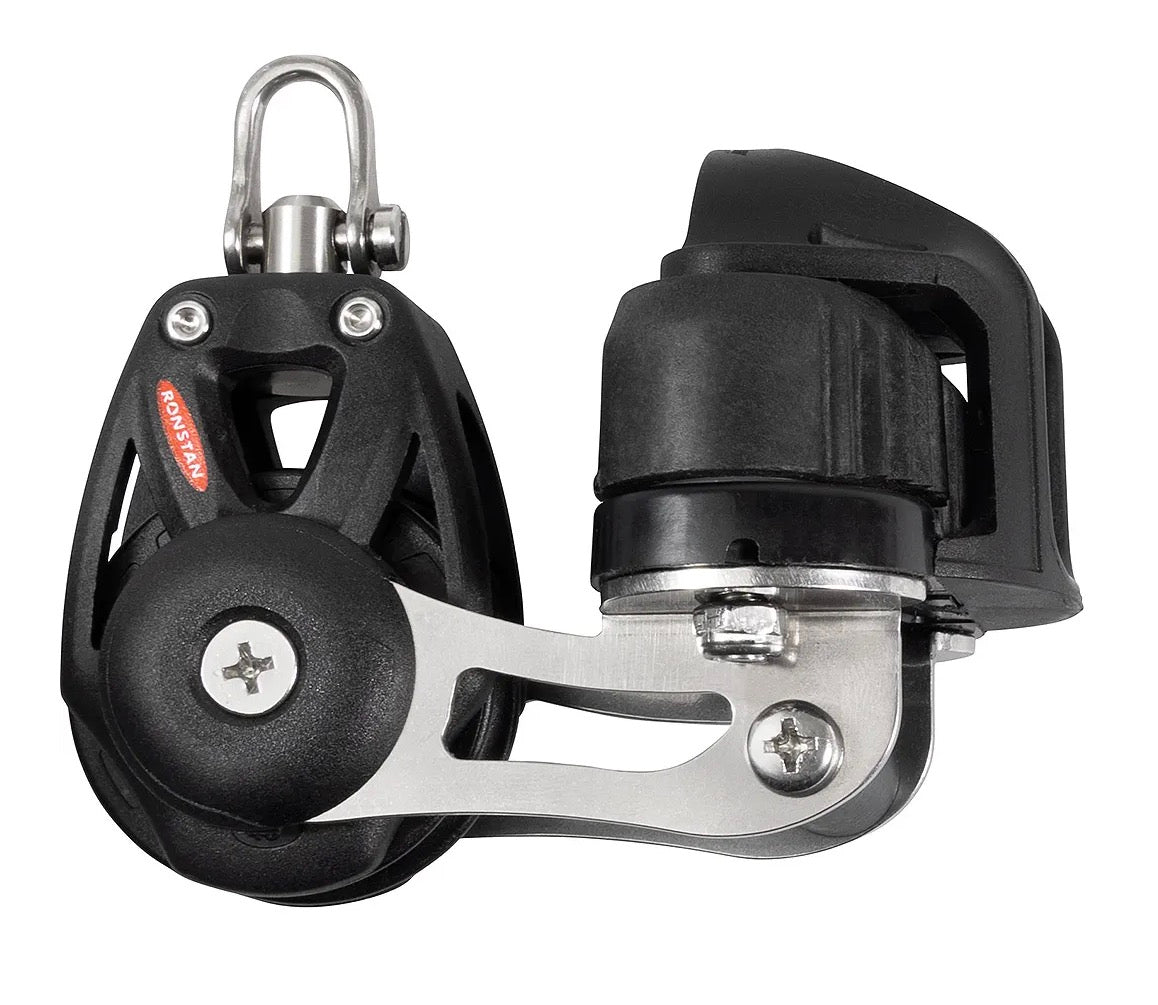

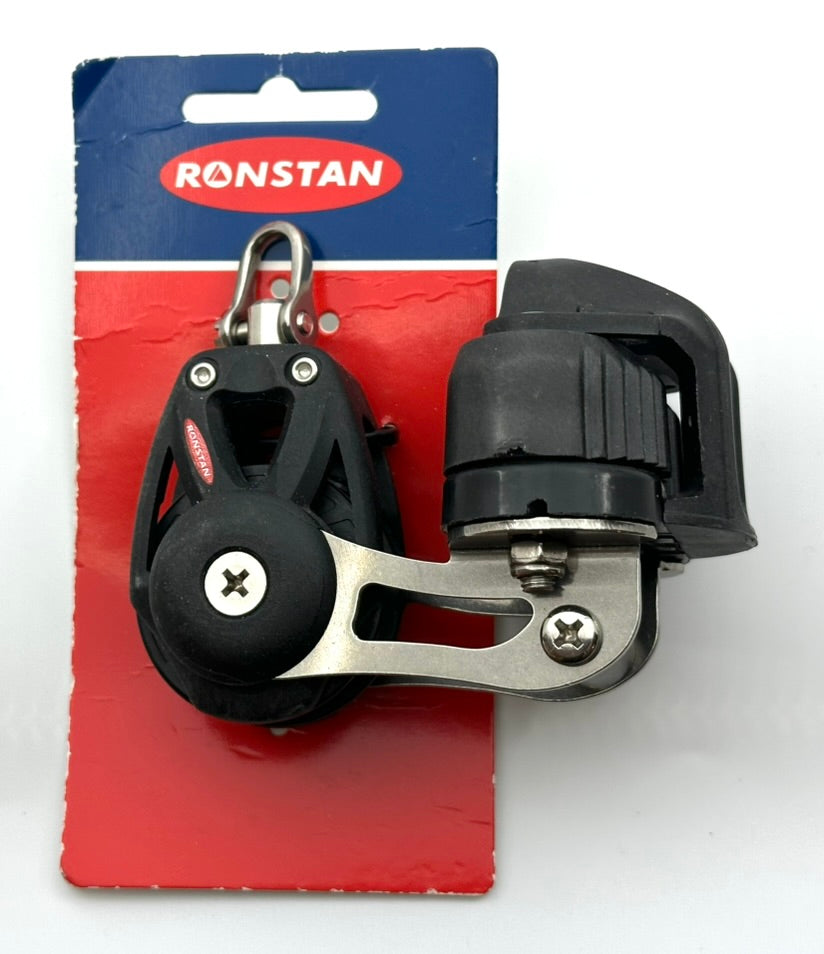

The Series 40 Series 40 Ball Bearing Orbit Block™ with Cam Cleat has a 2-way headpost that can be fixed at 0 or 90 degrees or swivel freely. The composite C-Cleat™ and fairlead provide powerful, efficient adjustment and secure holding for important lines under load.
PERFORMANCE MEETS RELIABILITY
The new Series 40 ball bearing Orbit Blocks™ provide the perfect balance of strength, performance, and reliability. They offer class-leading dynamic and static load ratings, the highest available in this size of performance blocks. Lightweight and strong toughened glass fibre reinforced nylon cheeks replace stainless steel straps used in traditional utility blocks - the perfect balance of performance and reliability.
As well as traditional single swivel blocks, the range also includes single and double sheave lashing or soft attachment options through to multiple sheave blocks including those with quad and quin sheaves. The range is extremely versatile allowing a multitude of possible systems right up to a 12:1 purchase mainsheet system for off-the-beach performance catamarans.
Series 40 Orbit Blocks™ are fitted with our carbon reinforced C-Cleat™ for secure rope holding with low entry and exit efforts, and fairleads for fast action from any angle. Cleat arms are made from stainless steel and are adjustable for setting to your preferred cleating angle.
Ball Bearing versions incorporate our 2-stage bearing system using ball bearings to minimise friction and a secondary full-contact bearing to maintain low friction across the full working load range.
High Load versions are designed specifically for any application where high dynamic or static loads are expected. They feature a high strength grade 2205 stainless steel sheave & hub together with a triple bearing race to maintain low friction at very high loads.
Applications
- Mainsheet systems and spinnaker sheets on dinghies, off-the-beach catamarans and sport boats to 8m (26ft)
- Halyard, vang and backstay applications on boats to 8m (26ft)
- Control line applications on larger yachts
Specifications
- Maximum rope diameter: 3/8 in. (9mm)
- Maximum working load: 880 lbs.
- Sheave diameter: 1-9/16 in.
- Breaking load: 1760 lbs.
- Weight: 6.2 oz.
- Note: MWL based on maximum allowable line load through cleat of 175kg (385lb), 1:1 purchase. Total block load. Becket MWL = 400kg (880lb), BL 800kg (1760lb)
