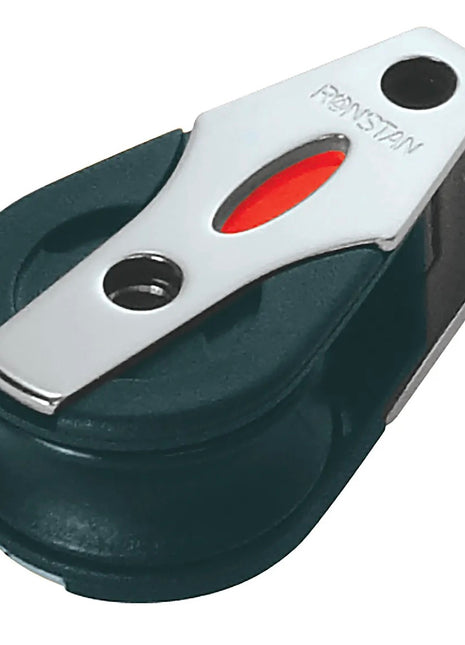

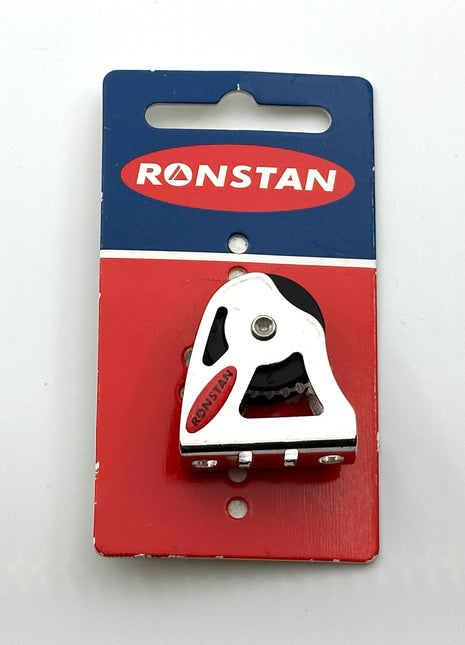

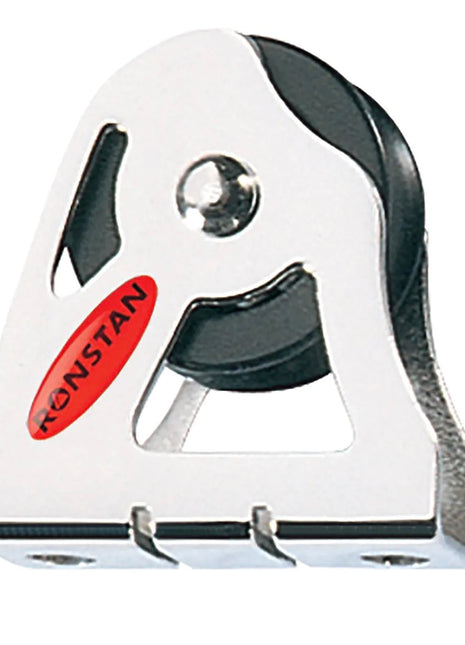

Lead blocks are a low profile solution for leading halyards or other rig sail controls back to cleats or jammers. Precision moulded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction.

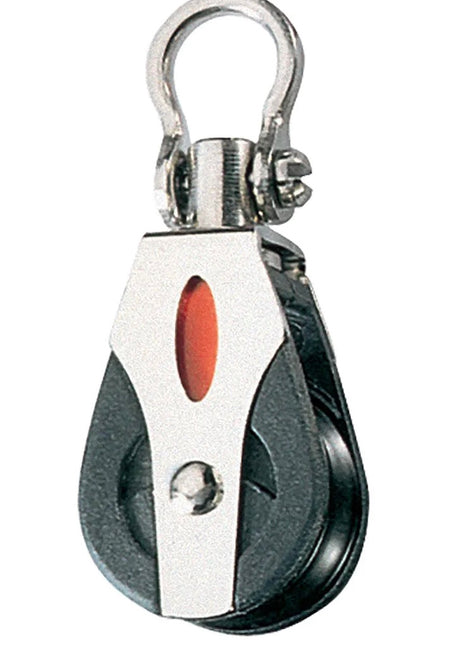

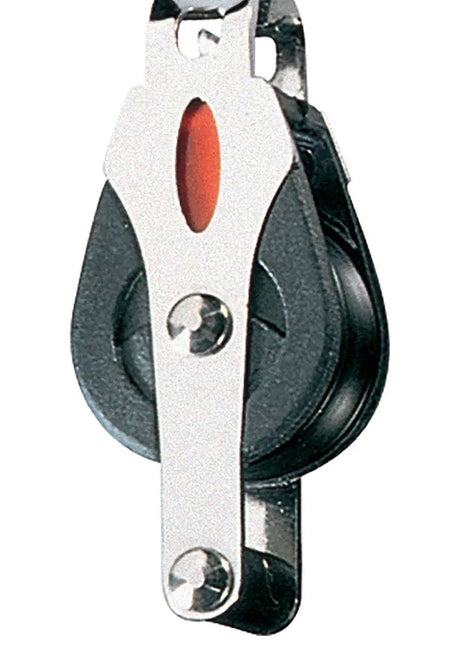

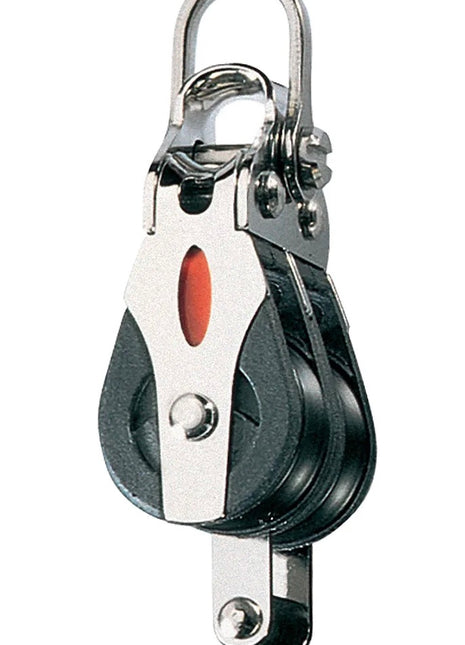

Ronstan designs and manufactures world-class blocks and pulleys for all types of sailing. The Series 20 uses 20mm ball bearing sheaves and fits 6mm or 1/4" line.
Features
Compatible with our in-house custom risers
Can be mounted side by side for multiple lines
Tip: use our custom riser to color code each lead block location
Specifications
Maximum working load: 500 lbs. or 250 kg.
Breaking load: 1210 lbs. or 550 kg.
Weight: 18g

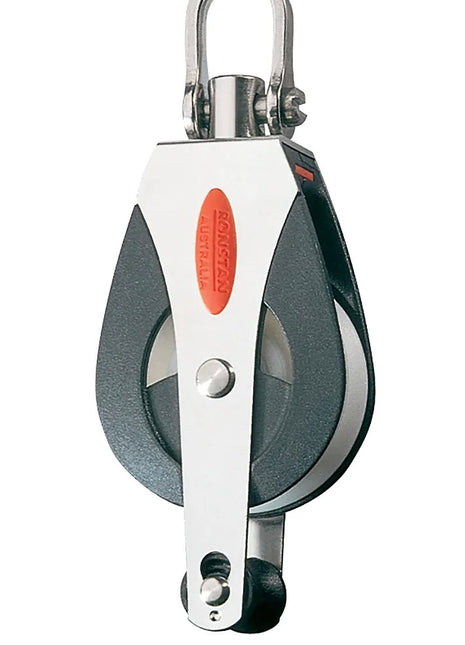

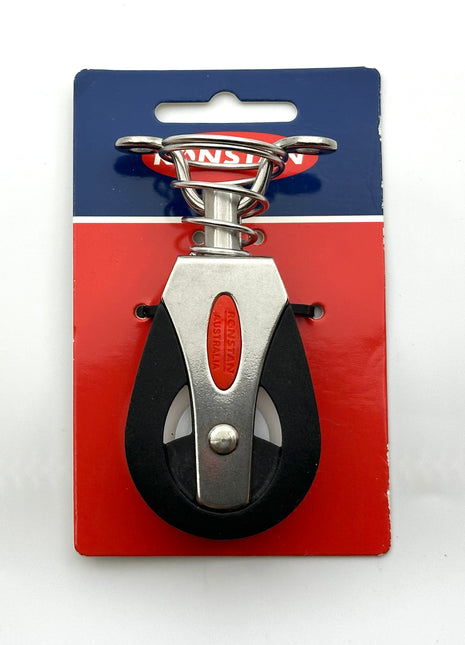

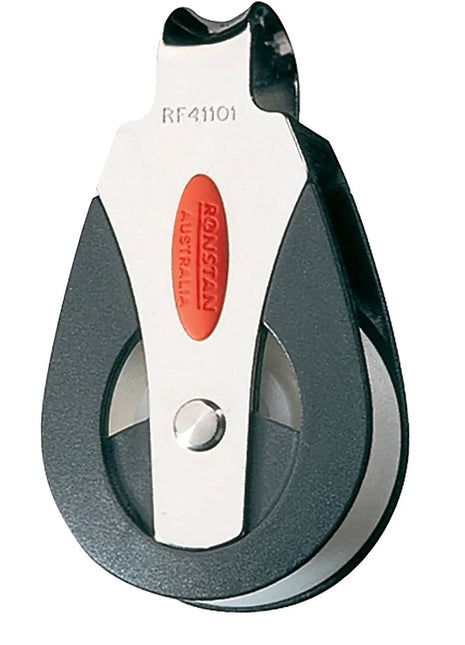

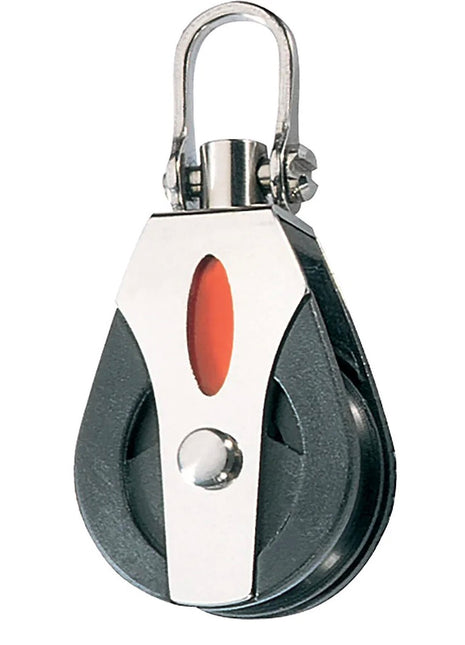

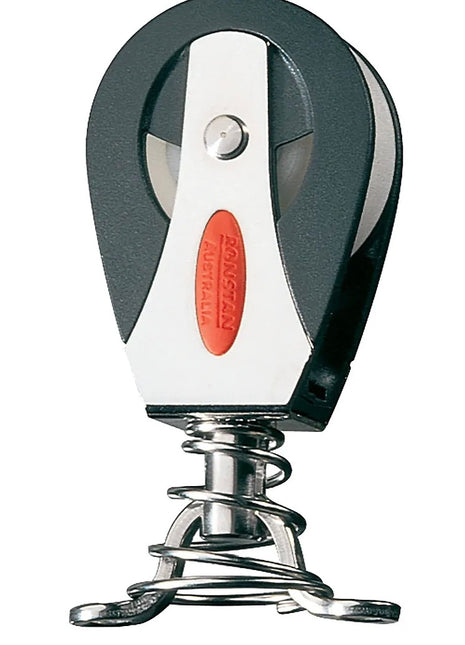

Single sheave all purpose stand-up block from Series 40. Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.
Features
Exceptionally high working loads.
Low maintenance, long service life.
Self-lubricating sheave.
Captive Lock™ universal head.
UV stabilized Acetal sheaves
Impact and UV resistant, fiber reinforced polyamide cheeks
Grade 316 stainless steel load strap, head fitting and bearing race
Specifications
Maximum rope diameter: 3/8"
Maximum working load: 880 lbs.
Sheave diameter: 1-9/16"
Breaking load: 1760 lbs.
Weight: 2.5 oz.
Fastener diameter: 3/16" (5mm)

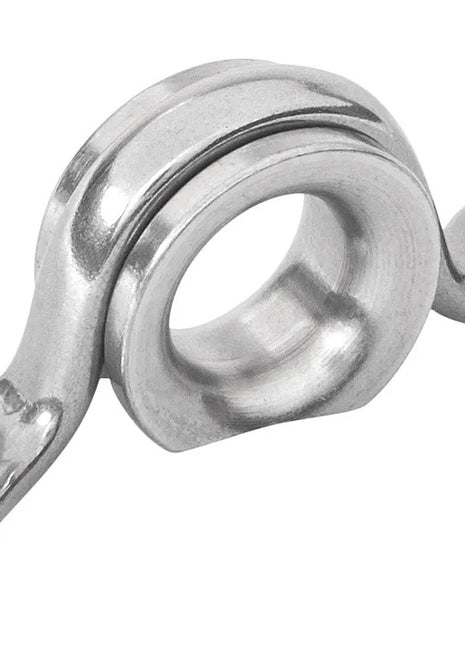

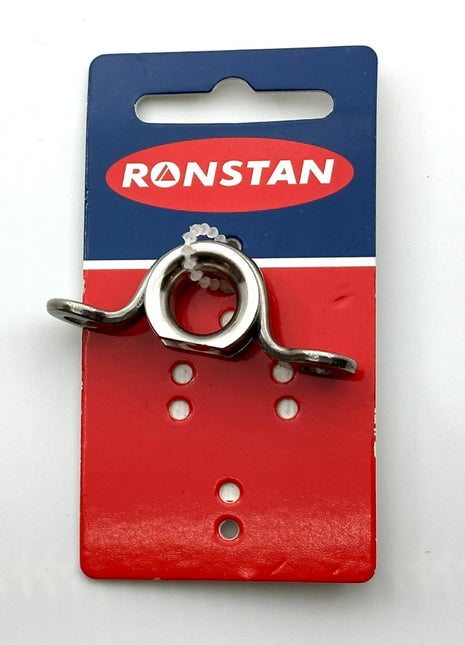

Saddle eyes and padeyes are a lightweight, reliable solution for guiding lines on deck, secure attachment points, and serve as connecting points for shackles or slings. This 10mm size is great for dinghies, canoes, kayaks and other small boats, and lightweight tasks on larger vessels. The ferrule lowers friction when used as a fairlead, and spreads the load when used as a lashing point.
Features
Exceptionally high working loads for its size
Low maintenance, long service life
Mounts with 2 x 5mm (3/16") fasteners (not supplied)
Specifications
Maximum rope diameter: less than 3/8" (10mm)
Weight: 0.3 oz.
